Miniature Linear Servo Actuator
  • SKU:

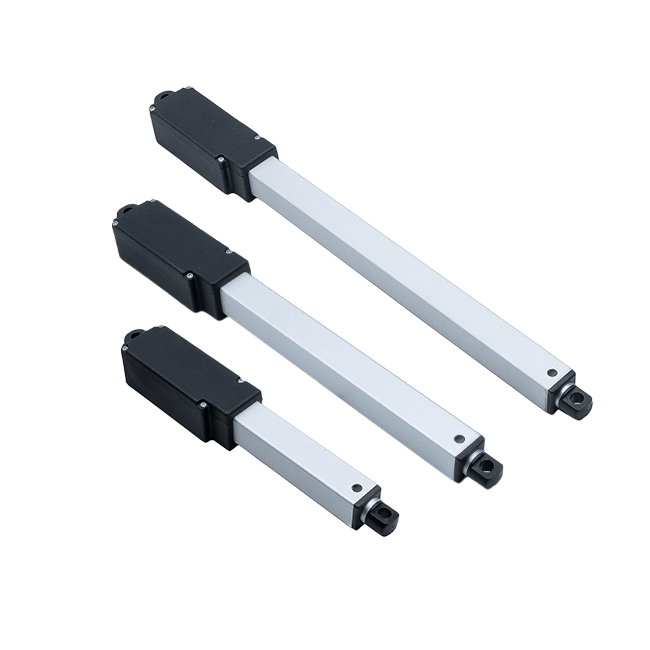

Miniature Linear Servo Actuator

These nifty little linear servos act like pneumatic air cylinders, but are powered by an electronic servo instead of compressed air! This means that not only do they provide reliable linear motion, but also have the added bonus of being able to extend to any position in its range of motion, not just full in or full out!

  • Available in 50, 100, and 140 mm stroke lengths
  • 35:1, 63:1, and 150:1 gear ratios
  • Servo powered actuator does not take up a PDP slot
  • Mounts like a pneumatic air cylinder

Access User Guide, Kit Contents & More!

$69.99
P/N Description Material CAD Onshape Drawings Weight
WCP-0407 Miniature Linear Servo Actuator (35:1, 50mm Stroke) Plastic Extended
Retracted
Link  PDF 0.127 lbs
WCP-0408 Miniature Linear Servo Actuator (35:1, 100mm Stroke) Plastic Extended
Retracted
Link PDF 0.158 lbs
WCP-0409 Miniature Linear Servo Actuator (35:1, 140mm Stroke) Plastic Extended
Retracted
Link PDF 0.184 lbs

WCP-0410 Miniature Linear Servo Actuator (63:1, 50mm Stroke) Plastic Extended
Retracted
Link PDF 0.127 lbs
WCP-0411 Miniature Linear Servo Actuator (63:1, 100mm Stroke) Plastic Extended
Retracted
Link PDF 0.158 lbs
WCP-0412 Miniature Linear Servo Actuator (63:1, 140mm Stroke) Plastic Extended
Retracted
Link PDF 0.184 lbs

WCP-0413 Miniature Linear Servo Actuator (150:1, 50mm Stroke) Plastic Extended
Retracted
Link PDF 0.127 lbs
WCP-0414 Miniature Linear Servo Actuator (150:1, 100mm Stroke) Plastic Extended
Retracted
Link PDF 0.158 lbs
WCP-0415 Miniature Linear Servo Actuator (150:1, 140mm Stroke) Plastic Extended
Retracted
Link PDF 0.184 lbs
