Bearing Mounts & Retention Plates

    Bearing Mounts & Retention Plates

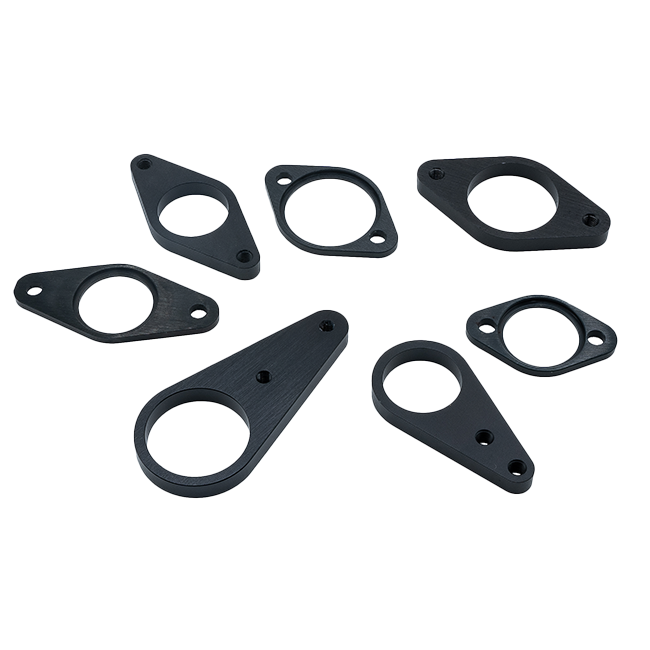

    Bearing Mounts & Retention Plates are designed for FRC robotics and provide a secure foundation for bearings. The aluminum construction ensures reliable functionality for even the most demanding applications while keeping weight to a minimum.

    Access User Guide, Kit Contents

    $6.99
    P/N Description Material CAD Onshape Drawings Weight
    WCP-0104 Roller End Plate (.875" Bore) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.007 lbs
    (Per Part)
    WCP-0105 Roller Center Plate (.875" Bore) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.025 lbs
    (Per Part)
    WCP-0487 Center Bearing Retention Plate (.875 Bore, 1.25" C-C) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.007 lbs
    (Per Part)
    WCP-0327 Center Bearing Retention Plate (.875 Bore, 2" C-C) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.013 lbs
    (Per Part)
    WCP-0475 Roller End Plate (1.125" Bore) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.042 lbs
    (Per Part)
    WCP-0476 Roller Center Plate (1.125" Bore) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.030 lbs
    (Per Part)
    WCP-0488 Center Bearing Retention Plate (1.125 Bore, 1.5" C-C) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.008 lbs
    (Per Part)
    WCP-0328 Center Bearing Retention Plate (1.125 Bore, 2" C-C) (2-Pack) 6061-T6 Aluminum STEP Link PDF 0.012 lbs
    (Per Part)
