Bevel Gears
  • SKU:

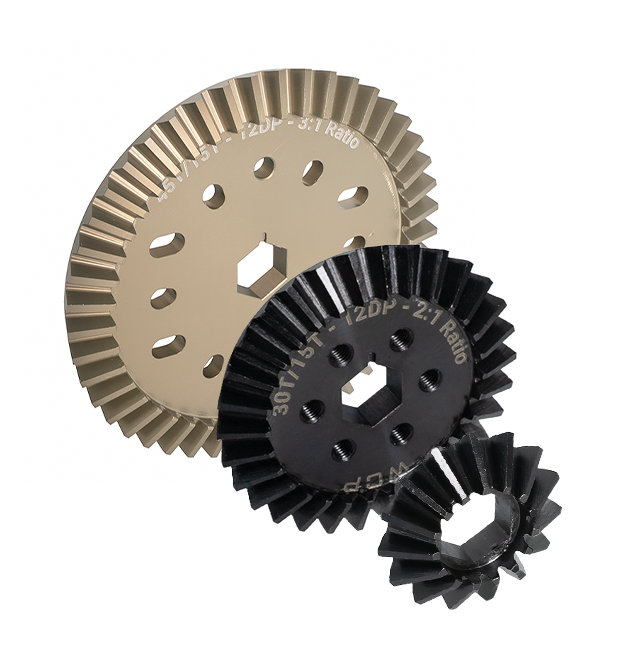

Bevel Gears

The "standard" swerve drive bevel gear - now with black nitride coating for superior performance.

As time passes and experience grows within the FRC community, previously complicated build techniques are becoming more commonplace. Coaxial swerve drives, once attempted by only the most elite of teams, are now a well documented and accessible solution. Most coaxial swerve drives utilize a bevel gear pair as part of their design. After surveying FRC teams, we found almost everyone is using the same gear.

WCP now offers multiple Bevel Gears that are great for custom swerve modules!

Access User Guide, Kit Contents & More!

$14.99
P/N Description Material CAD Onshape Drawings Weight
WCP-0751 15t Steel Bevel Gear (12DP, 3/8" Hex Bore) 4140 Steel STEP Link PDF 0.118 lbs
WCP-0752 15t Steel Bevel Gear (12 DP, 1/2" Hex Bore) 4140 Steel STEP Link PDF 0.120 lbs

WCP-1114 45t Steel Bevel Gear (1.25 Module, Round Bore) 4140 Steel STEP Link PDF 0.217 lbs

WCP-0276 15t Steel Bevel Gear (1.5 Module, 3/8" Hex Bore) 4140 Steel STEP Link PDF 0.038 lbs
WCP-0233 45t Steel Bevel Gear (1.5 Module, 1" Round Bore) 4140 Steel STEP Link PDF 0.323 lbs
WCP-0453 45t Aluminum Bevel Gear (1.5 Module, 1" Round Bore) 7075-T6 Aluminum STEP Link PDF 0.111 lbs
