217-3571: 50t Aluminum Spur Gear (20 DP, 3/8
217-3572: 50t Aluminum Spur Gear (20 DP, 1/2
  • SKU:

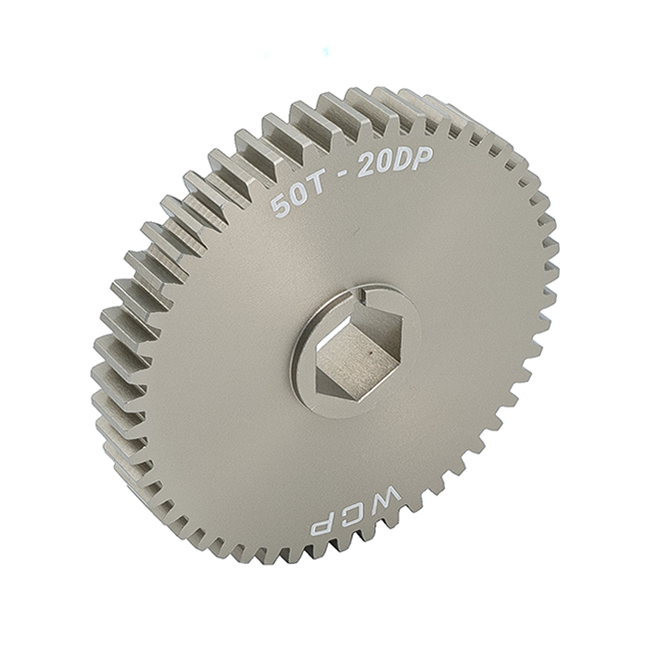

Aluminum Hex Bore Gears

WestCoast Products offers an assortment of gear types, chosen to provide the greatest versatility of gearing options to users. Our sizes were specifically chosen to provide a wide spread of of ratio options useful for FRC designers. Larger size gears are available so designers can accomplish their entire reduction in a single stage where otherwise they would have used more than one!

All WCP gears are 20DP with 14.5 degree pressure angle, and have the same overall width. This means it is easy to interchange gears in your design to change a ratio without modifying the overall system; true versatility.



  • 3/8" or 1/2" hex bores for use on hex or thunderhex shafts
  • Made from 7075-T6 aluminum with a teflon infused ceramic coating
  • Overall width 0.500"



Note: Hex bore is not keyed to gear teeth.

$9.99
P/N Description Material CAD Drawings Weight
217-2699 14t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.017 lbs
217-5450 16t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.020 lbs
217-3208 18t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.030 lbs
217-2701 20t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.036 lbs
217-5452 22t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.039 lbs
217-2703 24t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.053 lbs
217-5453 26t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.057 lbs
217-5454 28t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.067 lbs
217-3210 30t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.070 lbs
217-5455 32t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.071 lbs
217-3211 34t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.090 lbs
217-3213 36t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.100 lbs
217-5456 38t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.103 lbs
217-2707 40t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.119 lbs
217-3215 42t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.134 lbs
217-5457 44t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.139 lbs
217-5458 46t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.153 lbs
WCP-0114 48t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.162 lbs
217-3571 50t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.180 lbs
217-5459 52t Aluminum Spur Gear (20 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.196 lbs
WCP-0112 16t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.015 lbs
217-3209 18t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.054 lbs
217-2702 20t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.031 lbs
217-5462 22t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.035 lbs
217-2704 24t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.046 lbs
217-5465 26t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.052 lbs
217-5467 28t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.063 lbs
217-2705 30t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.065 lbs
217-5470 32t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.069 lbs
217-2706 34t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.084 lbs
217-3214 36t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.096 lbs
217-5471 38t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.100 lbs
217-2708 40t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.120 lbs
217-3216 42t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.130 lbs
217-2710 44t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.143 lbs
217-5472 46t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.150 lbs
WCP-0188 48t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.158 lbs
217-3572 50t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.184 lbs
217-5473 52t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.194 lbs
217-3573 54t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.214 lbs
217-5474 56t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.226 lbs
217-5475 58t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.243 lbs
217-3574 60t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.262 lbs
217-5476 62t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.279 lbs
217-3575 64t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.300 lbs
WCP-0171 66t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.317 lbs
217-5477 68t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.324 lbs
WCP-0172 70t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.358 lbs
217-3576 72t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.384 lbs
217-5478 74t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.400 lbs
217-5479 76t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.422 lbs
217-5480 78t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.446 lbs
217-5481 80t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.469 lbs
217-5482 82t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.493 lbs
217-3577 84t Aluminum Spur Gear (20 DP, 1/2" Hex Bore) 7075-T6 Aluminum STEP PDF 0.530 lbs
