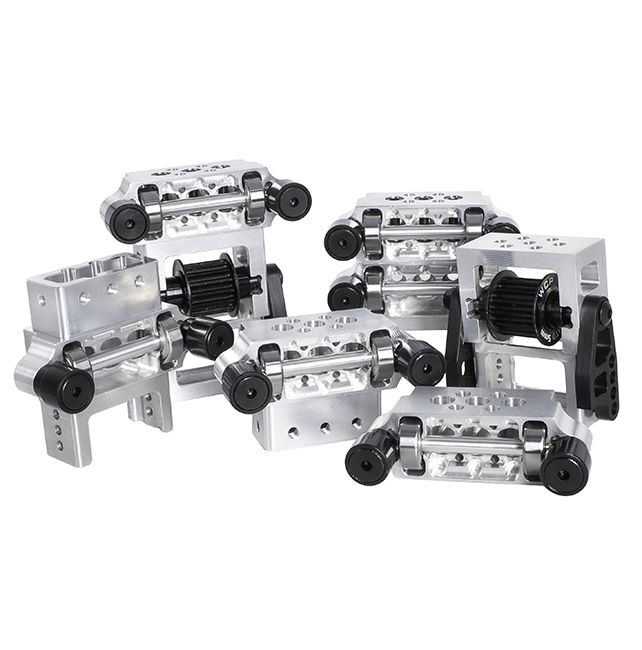

Elevator Components

Elevators can be more effective at lifting objects than arms because they don’t move the object further away from the robot while lifting. The tradeoff in performance comes with complexity, and often this has kept many teams from making elevator systems on their robots. Our collection of elevator products will help your team make a simple, reliable elevator system that will be sure to elevate your level of play:


  • Energy chain makes wire management on elevator systems a breeze
  • Our variety of chain tensioning options let you chain-rig your elevator power
  • Use a friction brake to hold your elevator in place without stalling your motors
  • Create your elevator frame with aluminum tubes and gussets

Access User Guide, Kit Contents & More! :

$49.99
P/N Description Material CAD Onshape Drawings Weight
WCP-0199 Elevator Inline Bearing Block (#10-32 Tapped) 6061-T6 Aluminum STEP Link PDF 0.310 lbs
WCP-0897 Elevator Inline Clamping Bearing Block 6061-T6 Aluminum STEP Link PDF 0.157 lbs
WCP-0323 Elevator Clamping Blocks (1" Width, #10-32 Tapped) (2-Pack)  6061-T6 Aluminum STEP Link PDF 0.092 lbs

WCP-0157 Semi-Enclosed Energy Chain (15mm x 30mm, 1 meter length) Nylon - PDF 0.691 lbs
WCP-0159 Semi-Enclosed Energy Chain (15mm x 45mm, 1 meter length) Nylon - - PDF 0.870 lbs

WCP-0247 #25 Chain TurnBuckle 7075-T6 Aluminum STEP Link PDF 0.039 lbs
WCP-0963 #35 Chain TurnBuckle V2 7075-T6 Aluminum STEP Link PDF 0.074 lbs
WCP-0051 Spartan #25 Chain Tensioner 7075-T6 Aluminum STEP Link PDF 0.026 lbs
WCP-0052 Spartan #35 Chain Tensioner 7075-T6 Aluminum STEP Link PDF 0.061 lbs
WCP-0298 Cascade Pulley Block 6061-T6 Aluminum STEP Link PDF 0.073 lbs
WCP-0096 1.625" Pulley (1/4" Groove, Single) Glass Filled Nylon STEP Link PDF 0.021 lbs
WCP-1472 .732" OD x .875" WD Belt Idler Pulley (1/2" Hex Bore) 6061-T6 Aluminum STEP Link PDF 0.023 lbs
WCP-0598 25' x 18mm Wide Kevlar Backed Timing Belt (HTD 5mm) Neoprene - Kevlar Cord - - PDF 1.238 lbs

WCP-0200 Friction Brake (1/2" Hex) Plates & Spacers: 6061-T6 Aluminum
Brake Pad: 45A Silicone Rubber
STEP Link PDF 0.201 lbs
WCP-0222 Aluminum Spacers (.196" ID x 3/8" OD x 1-1/4" WD) (5-Pack) 6061-T6 Aluminum STEP Link PDF 0.010 lbs
(Per Shaft)
WCP-0201 Friction Brake Pad (2" Bolt Pattern, Silicone Rubber, 45A) 45A Silicone Rubber STEP Link PDF 0.032 lbs

WCP-0921 2" x 1" x 0.0625" Aluminum Tube Stock (47") 6061-T6 Aluminum STEP Link PDF 1.648 lbs
WCP-0922 2" x 1" x 0.125" Aluminum Tube Stock (47") 6061-T6 Aluminum STEP Link PDF 3.159 lbs
WCP-0894 2" x 1" x 0.0625" Aluminum Tube Stock 1" Pattern (47") 6061-T6 Aluminum STEP Link PDF 1.613 lbs
WCP-1024 2" x 1" x 0.125" Aluminum Tube Stock 1" Pattern (47") 6061-T6 Aluminum STEP Link PDF 3.091 lbs
