Pneumatics

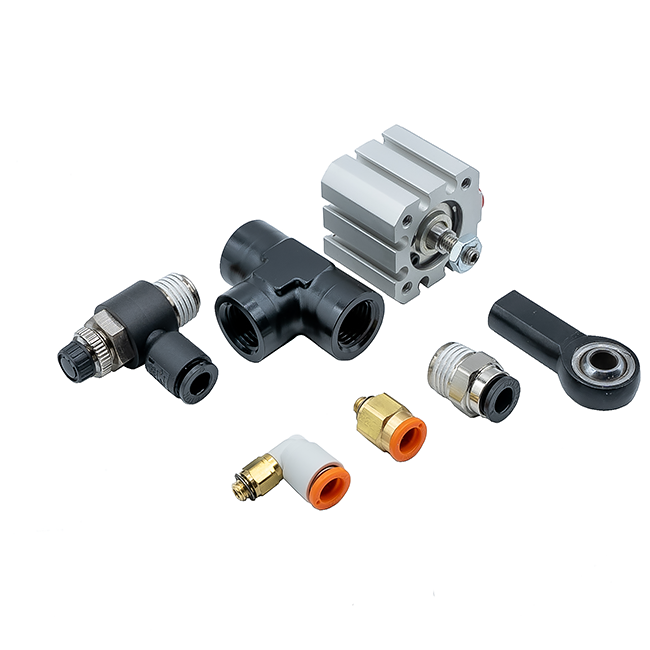

WestCoast Products offers two types of pneumatic fittings to provide a lightweight, simple solution when designing robots. All of these fittings have a lightweight plastic body. The NPT threads are made from a nickel plated brass and come with thread sealer pre-applied. This is great for teams since they won’t have to struggle to apply teflon tape the first time they use a fitting.

The VEXpro Pneumatic Tubing Cutter has a deeper "V" groove for hose, making it easier to create straight cuts over other tube cutters on the market.

$9.99
P/N Description Material CAD Drawings Weight
WCP-0303 Air Cylinder Mounting Blocks (.188" Hole, 90 Degree Rotation) 6061-T6 Aluminum STEP PDF 0.013 lbs
WCP-0304 Air Cylinder Mounting Blocks (.250" Hole, 90 Degree Rotation) 6061-T6 Aluminum STEP PDF 0.021 lbs
WCP-0019 Aluminum Female Rod End (#10-32, .1875" ID) 7075-T6 Aluminum STEP PDF 0.023 lbs
WCP-0020 Aluminum Female Rod End (1/4"-28, .250" ID) 7075-T6 Aluminum STEP PDF 0.034 lbs

WCP-0456 90 Degree Aluminum Connector (1/8" NPT, Female) Forged Aluminum - PDF 0.020 lbs
WCP-0457 90 Degree Aluminum Connector (1/4" NPT, Female) Forged Aluminum - PDF 0.055 lbs
WCP-0458 Tee Aluminum Connector (1/8" NPT, Female) Forged Aluminum - PDF 0.024 lbs
WCP-0459 Tee Aluminum Connector (1/4" NPT, Female) Forged Aluminum - PDF 0.056 lbs
WCP-0460 Straight Aluminum Connector (1/8" NPT, Female) Forged Aluminum - PDF 0.018 lbs
WCP-0461 Straight Aluminum Connector (1/4" NPT, Female) Forged Aluminum - PDF 0.046 lbs
WCP-0462 Straight Aluminum Connector (1/8" NPT, Male) Forged Aluminum - PDF 0.010 lbs
WCP-0463 Straight Aluminum Connector (1/4" NPT, Male) Forged Aluminum - PDF 0.020 lbs
WCP-0464 Aluminum Hex Plug (1/8" NPT, Male) Aluminum - PDF 0.009 lbs
WCP-0465 Aluminum Hex Plug (1/4" NPT, Male) Aluminum - PDF 0.018 lbs
WCP-0466 Aluminum Socket Plug (1/8" NPT, Male) Aluminum - PDF 0.003 lbs
WCP-0467 Aluminum Socket Plug (1/4" NPT, Male) Aluminum - PDF 0.006 lbs
WCP-0468 Aluminum Reducing Adapter (1/4" NPT to 1/8" NPT) Aluminum - PDF 0.012 lbs

217-6608 Straight Pneumatic Fitting (1/8" NPT, 1/4" Hose) Plastic - - 0.260 lbs
217-6609 Straight Pneumatic Fitting (1/4" NPT, 1/4" Hose) Plastic - - 0.260 lbs
217-6611 90 Deg. Elbow Pneumatic Fitting (1/8" NPT, 1/4" Hose) Plastic - - 0.260 lbs
217-6612 90 Deg. Elbow Pneumatic Fitting (1/4" NPT, 1/4" Hose) Plastic - - 0.260 lbs
217-6613 "T" Pneumatic Fitting (1/4" Hose) Plastic - - 0.050 lbs
217-6614 Straight Pneumatic Fitting (1/4" Hose) Plastic - - 0.050 lbs
217-6615 90 Deg. Elbow Pneumatic Fitting (1/4" Hose) Plastic - - 0.050 lbs
217-6616 "Y" Pneumatic Fitting (1/4" Hose) Plastic - - 0.050 lbs
217-6617 Cross Pneumatic Fitting (1/4" Hose) Plastic - - 0.100 lbs
217-6618 90 Deg. Elbow Pneumatic Fitting (Flow Control, 1/8" NPT, 1/4" Hose) Plastic - - 0.100 lbs
217-6619 90 Deg. Elbow Pneumatic Fitting (Flow Control, 1/4" NPT, 1/4" Hose) Plastic - - 0.260 lbs
217-6621 One-Way Flow Reducer Pneumatic Fitting (1/4" Hose) Plastic - - 0.260 lbs
217-6622 Pneumatic Tubing Cutter Plastic - Metal Blade - - 0.260 lbs

217-2778 Pancake Pneumatic Cylinder 3/4" Bore 1/2" Travel Aluminum STEP PDF 0.133 lbs
