WCP-0095: 50t Aluminum Spur Gear (20 DP, Dog, ThunderHex Bearing)
217-2713: 60t Aluminum Spur Gear (20 DP, Ball Shifter)
  • SKU:

Ball Shifter & Dog Gears

WestCoast Products offers an assortment of gear types, chosen to provide the greatest versatility of gearing options to users. Our sizes were specifically chosen to provide a wide spread of of ratio options useful for FIRST ® Robotics Competition designers. Larger size gears are available so designers can accomplish their entire reduction in a single stage where otherwise they would have used more than one!

All gears are 20 DP with 14.5 degree pressure angle, and have the same overall width -- this means it is easy to interchange WCP gears in your design to change a ratio without modifying the overall system; true versatility.

$19.99
P/N Description Material CAD Drawings Weight
217-3417 40t Aluminum Spur Gear (20 DP, Dog, 1/2" Bearing) 7075-T6 Aluminum STEP PDF 0.126 lbs
217-3418 44t Aluminum Spur Gear (20 DP, Dog, 1/2" Bearing) 7075-T6 Aluminum STEP PDF 0.139 lbs
217-3419 50t Aluminum Spur Gear (20 DP, Dog, 1/2" Bearing) 7075-T6 Aluminum STEP PDF 0.170 lbs
217-3420 60T Aluminum Spur Gear (20 DP, Dog, 1/2" Hex Bearing) 7075-T6 Aluminum STEP PDF 0.228 lbs

WCP-0091 30t Aluminum Spur Gear (20 DP, Dog, ThunderHex Bearing) 7075-T6 Aluminum STEP PDF 0.000 lbs
WCP-0092 34t Aluminum Spur Gear (20 DP, Dog, ThunderHex Bearing) 7075-T6 Aluminum STEP PDF 0.000 lbs
WCP-0093 40t Aluminum Spur Gear (20 DP, Dog, ThunderHex Bearing) 7075-T6 Aluminum STEP PDF 0.000 lbs

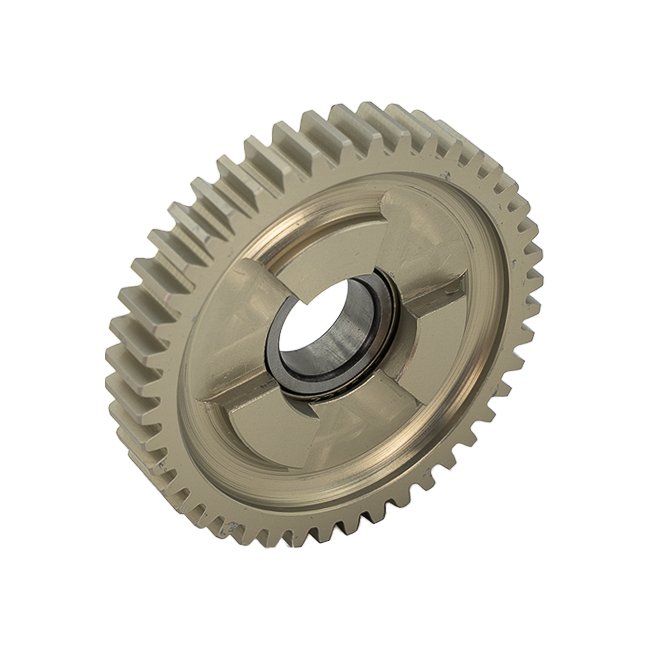

WCP-0094 44t Aluminum Spur Gear (20 DP, Dog, ThunderHex Bearing) 7075-T6 Aluminum STEP PDF 0.000 lbs
WCP-0095 50t Aluminum Spur Gear (20 DP, Dog, ThunderHex Bearing) 7075-T6 Aluminum STEP PDF 0.000 lbs
