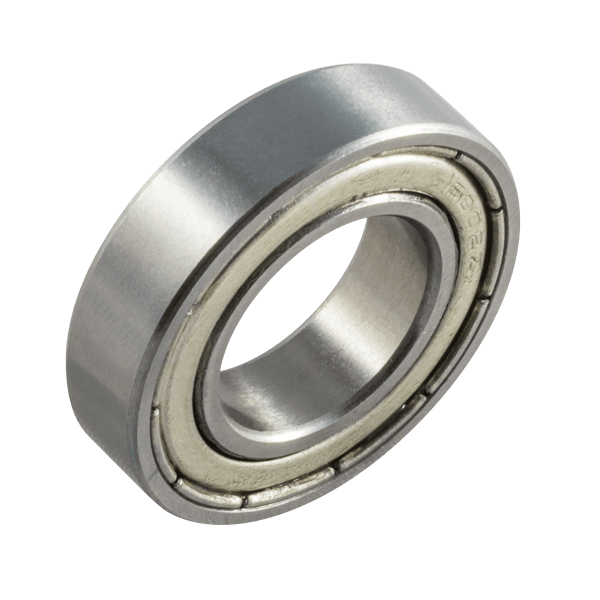

Ball Bearings
  • SKU:

Ball Bearings

For FIRST® Robotics teams, bearings are essential components for building robots that move smoothly and efficiently. WestCoast Products understands this need and offers a wide variety of bearings to meet the demands of any robot design. WCP carries almost all common bearings used by FIRST® Robotics teams.

Access User Guide, Kit Contents & More!

$2.99
P/N Description Material CAD Onshape Drawings Weight
217-5830 0.302" (1/4" ThunderSquare) ID x 0.875" OD x 0.280" WD (Flanged Bearing) - STEP - PDF 0.040 lbs
WCP-0784 10.25mm (3/8" Rounded Hex) ID x 0.875" OD x 0.280" WD (Flanged Bearing) - STEP Link PDF 0.040 lbs
WCP-0785 13.75mm (1/2" Rounded Hex) ID x 1.125" OD x 0.313" WD (Flanged Bearing) - STEP Link PDF 0.050 lbs

WCP-1507 0.375" Hex ID x 1.125" OD x 0.313" WD (Flanged Bearing) - STEP Link PDF 0.060 lbs
WCP-0783 0.500" Hex ID x 1.125" OD x 0.313" WD (Flanged Bearing v2) - STEP Link PDF 0.052 lbs

WCP-0072 0.250" ID x 0.500" OD x 0.188" WD (Flanged Bearing) - STEP Link PDF 0.010 lbs
WCP-0042 0.250" ID x 0.625" OD x 0.196" WD (Flanged Bearing) - STEP Link PDF 0.012 lbs
WCP-0779 0.375" ID x 0.875" OD x 0.280" WD (Flanged Bearing) - STEP Link PDF 0.031 lbs
WCP-0780 0.375" ID x 1.125" OD x 0.313" WD (Flanged Bearing) - STEP Link PDF 0.063 lbs
WCP-0781 0.500" ID x 1.125" OD x 0.313" WD (Flanged Bearing) - STEP Link PDF 0.058 lbs
WCP-0782 0.750" ID x 1.375" OD x 0.437" WD (Flanged Bearing) - STEP Link PDF 0.091 lbs

WCP-0773 0.188" ID x 0.500" OD x 0.196" WD (Radial Bearing) - STEP Link PDF 0.010 lbs
WCP-0774 0.250" ID x 0.375" OD x 0.125" WD (Radial Bearing) - STEP Link PDF 0.010 lbs
WCP-0775 0.250" ID x 0.500" OD x 0.188" WD (Radial Bearing) - STEP Link PDF 0.010 lbs
WCP-0041 0.250" ID x 0.625" OD x 0.196" WD (Radial Bearing) - STEP Link PDF 0.013 lbs
WCP-0212 0.250" ID x 0.750" OD x 0.282" WD (Radial Bearing) - STEP Link PDF 0.022 lbs
WCP-0776 0.375" ID x 0.875" OD x 0.281" WD (Radial Bearing) - STEP Link PDF 0.030 lbs
WCP-0777 0.500" ID x 0.875" OD x 0.281" WD (Radial Bearing) - STEP Link PDF 0.026 lbs
WCP-0778 0.500" ID x 1.125" OD x 0.313" WD (Radial Bearing) - STEP Link PDF 0.050 lbs

WCP-1868 1" ID x 1.375" OD x .1875" WD (X-Contact Bearing) -

STEP

 - PDF 0.036 lbs
WCP-1869 1.5" ID x 1.875" OD x .1875" WD (X-Contact Bearing) - STEP - PDF 0.047 lbs
WCP-1870 1.75" ID x 2.125" OD x .1875" WD (X-Contact Bearing) - STEP - PDF 0.053 lbs
WCP-1871 2" ID x 2.5" OD x .25" WD (X-Contact Bearing) - STEP - PDF 0.112 lbs
WCP-1503 2.5" ID x 3" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.139 lbs
WCP-1111 2.5" ID x 3.125" OD x .3125" WD (X-Contact Bearing) - STEP Link PDF 0.216 lbs
WCP-0357 3" ID x 3.5" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.138 lbs
WCP-0887   3" ID x 3.5" OD x .25" WD (X-Contact Sealed Bearing)  - STEP  Link PDF 0.138 lbs
WCP-0037 3.5" ID x 4" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.156 lbs
WCP-0896 3.5" ID x 4" OD x .25" WD (X-Contact Sealed Bearing) - STEP Link PDF 0.156 lbs
WCP-0216 4" ID x 4.5" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.190 lbs
WCP-1557 4.5" ID x 5" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.220 lbs
WCP-0302  6" ID x 6.5" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.280 lbs
WCP-0337 8" ID x 8.5" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.380 lbs
WCP-1045 10" ID x 10.5" OD x .25" WD (X-Contact Bearing) - STEP Link PDF 0.500 lbs

WCP-0498 6mm ID x 12mm OD x 4mm WD (Radial Bearing) - STEP Link PDF 0.010 lbs
WCP-1508 8mm ID x 16mm OD x 5mm WD (Flanged Bearing) - STEP  Link PDF 0.008 lbs
WCP-1735 8mm ID x 16mm OD x 5mm WD (Radial Bearing) - STEP Link PDF 0.008 lbs
WCP-1734 12mm ID x 24mm OD x 6mm WD (Flanged Bearing) - STEP Link PDF 0.029 lbs
WCP-0078 15mm ID x 24mm OD x 5mm WD (Radial Bearing) - STEP Link PDF 0.015 lbs
WCP-0840 15mm ID x 28mm OD x 7mm WD (Radial Bearing) - STEP Link PDF 0.039 lbs
WCP-1660 17mm ID x 23mm OD x 4mm WD (Radial Bearing) - STEP - PDF 0.007 lbs
WCP-0841 17mm ID x 26mm OD x 5mm WD (Radial Bearing) - STEP Link PDF 0.023 lbs
WCP-0027 25mm ID x 37mm ID x 7mm WD (Radial Bearing) - STEP Link PDF 0.046 lbs
WCP-0299 30mm ID x 42mm ID x 7mm WD (Flanged Bearing) - STEP Link PDF 0.061 lbs
WCP-0884 35mm ID x 47mm OD x 7mm WD (Radial Bearing) - STEP - PDF 0.063 lbs
WCP-1471 35mm ID x 47mm OD x 7mm WD (Flanged Bearing) - STEP Link PDF 0.069 lbs
WCP-0036 80mm ID x 100mm OD x 10mm WD (Radial Bearing) - STEP Link PDF 0.346 lbs

WCP-0040 8mm ID x 16mm OD x 5mm WD (Thrust Bearing) - STEP Link PDF 0.012 lbs
WCP-0906 0.750" ID x 1.000" OD x 0.375" WD (Needle Bearing) - STEP - PDF 0.028 lbs
