32DP Gears

These gears have a Diametral Pitch of 32, which allows for reductions in smaller areas. They are also pocketed for maximum weight savings. Great for lighter load applications and smaller robots!

  • Diametrical Pitch: 32
  • Pressure Angle: 20°
  • Face Width: 7/16"
  • Overall Width: 1/2"

Note: These gears are NOT compatible with 20DP gears.

$6.99
P/N Description Material CAD Drawings Weight
WCP-0001 12T Steel Spur Gear (32 DP, RS550 Motor) 4140 Steel STEP PDF 0.019 lbs
217-5859 12T Steel Spur Gear (32 DP, RS775 Motor) 4140 Steel STEP PDF 0.018 lbs
WCP-0003 12T Steel Spur Gear (32 DP, BAG Motor) 4140 Steel STEP PDF 0.016 lbs
217-5904 20T Steel Spur Gear (32 DP, CIM Motor) 4140 Steel STEP PDF 0.024 lbs
217-5861 20T Steel Spur Gear (32 DP, 3/8" Hex Bore) 4140 Steel STEP PDF 0.024 lbs
217-5862 40T Aluminum Spur Gear (32 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.047 lbs
217-5866 40T Steel Spur Gear (32 DP, 3/8" Hex Bore) 4140 Steel STEP PDF 0.137 lbs
217-5863 60T Aluminum Spur Gear (32 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.058 lbs
217-5867 60T Steel Spur Gear (32 DP, 3/8" Hex Bore) 4140 Steel STEP PDF 0.170 lbs
217-5864 80T Aluminum Spur Gear (32 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.088 lbs

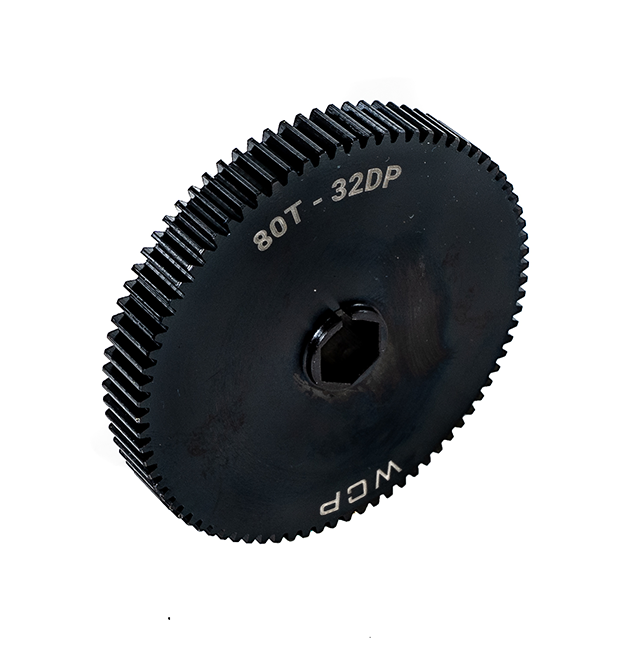

217-5868 80T Steel Spur Gear (32 DP, 3/8" Hex Bore) 4140 Steel STEP PDF 0.260 lbs
217-5865 100T Aluminum Spur Gear (32 DP, 3/8" Hex Bore) 7075-T6 Aluminum STEP PDF 0.123 lbs
217-5869 100T Steel Spur Gear (32 DP, 3/8" Hex Bore) 4140 Steel STEP PDF 0.360 lbs
