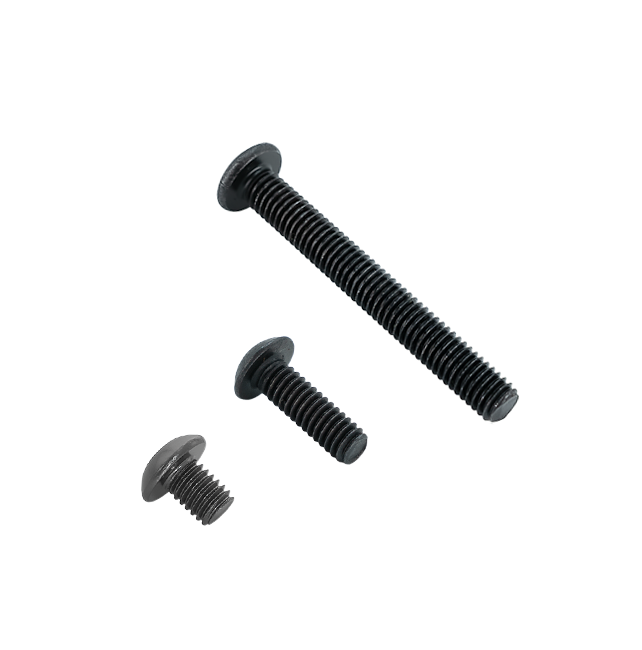

We love #10 hardware. We use it for everything. In all our years of building robots, we’ve found that when it comes to hardware, #10 is the best combination of strength, weight, size, and availability in most FRC applications, and for us, it just makes building robots easier. Button Head Cap Screws (BHCS) provide a low-profile hardware solution, while Socket Head Cap Screws (SHCS) provide a stronger, more strip-resistant hex socket with their larger head. The black-oxide coating increases strength and makes the bolts more resistant to corrosion, meaning you’ll never need to replace a bolt due to wear and weather. We also offer #8 bolts to interface with other commonly-used FRC hardware!
| P/N | Description | Material | CAD | Onshape | Drawings | Weight |
| WCP-0034 | #10-32 x .375" L SHCS (Steel, Ultra Low Profile) (2-Pack) | Steel | STEP | Link | 0.004 lbs | |
| WCP-0571 | #10-32 x .500" L PHCS (Steel, Black Oxide) (10-Pack) | Steel | STEP | Link | 0.007 lbs | |
| WCP-1740 | #10-32 x .250" L PHCS (Steel, Black Oxide) (10-Pack) | Steel | STEP | - | 0.006 lbs | |
| WCP-0574 | 6mm Round x 4mm L Shoulder Bolt (#8-32, Steel, Ultra Low Profile) (2-Pack) | Steel | STEP | Link | 0.004 lbs | |
| WCP-0473 | 1/4" Round x 3/8" L Shoulder Bolt (#10-32, Steel, Ultra Low Profile) (2-Pack) | Steel | STEP | Link | 0.009 lbs | |
| WCP-0474 | 1/4" Round x 7/8" L Shoulder Bolt (#10-32, Steel, Ultra Low Profile) (2-Pack) | Steel | STEP | Link | 0.016 lbs | |
| WCP-0106 | 3/8" Round x 5/16" L Shoulder Bolt (5/16"-18, Steel, Black Oxide) (2-Pack) | Steel | STEP | Link | 0.028 lbs | |
| WCP-0351 | 3/8" Round x 3/8" L Shoulder Bolt (5/16"-18, Steel, Black Oxide) (2-Pack) | Steel | STEP | Link | 0.030 lbs | |
| WCP-0352 | 3/8" Round x 3/8" L Shoulder Bolt (5/16"-24, Steel, Black Oxide) (2-Pack) | Steel | STEP | Link | 0.030 lbs | |
| WCP-1548 | #8-32 x .250" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.002 lbs | |
| WCP-0250 | #8-32 x .500" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.003 lbs | |
| WCP-0251 | #10-32 x .250" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.003 lbs | |
| WCP-0252 | #10-32 x .375" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.004 lbs | |
| WCP-0253 | #10-32 x .500" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.005 lbs | |
| WCP-0254 | #10-32 x .750" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.006 lbs | |
| WCP-1463 | #10-32 x .875" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.007 lbs | |
| WCP-0255 | #10-32 x 1.000" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.008 lbs | |
| WCP-0256 | #10-32 x 1.250" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.008 lbs | |
| WCP-0257 | #10-32 x 1.500" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.011 lbs | |
| WCP-0258 | #10-32 x 1.750" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.012 lbs | |
| WCP-0259 | #10-32 x 2.000" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.014 lbs | |
| WCP-0260 | #10-32 x 2.250" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.016 lbs | |
| WCP-0261 | #10-32 x 2.500" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.017 lbs | |
| WCP-0262 | #10-32 x 2.750" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.019 lbs | |
| WCP-0263 | #10-32 x 3.000" L BHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.020 lbs | |
| WCP-0264 | #10-32 x .250" L SHCS (Steel, Black Oxide) | Steel | STEP | Link | 0.004 lbs | |
| WCP-0265 | #10-32 x .375" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.005 lbs | |
| WCP-0266 | #10-32 x .500" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.006 lbs | |
| WCP-0267 | #10-32 x 1.000" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.009 lbs | |
| WCP-0268 | #10-32 x 1.500" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.012 lbs | |
| WCP-1549 | #10-32 x 1.750" L SHCS (Steel, Black Oxide) (50-Pack) | STEP | - | 0.016 lbs | ||
| WCP-0269 | #10-32 x 2.000" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.015 lbs | |
| WCP-0270 | #10-32 x 2.500" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.018 lbs | |
| WCP-0271 | #10-32 x 3.000" L SHCS (Steel, Black Oxide) (50-Pack) | Steel | STEP | Link | 0.021 lbs | |
| WCP-0272 | #10-32 x 3.500" L SHCS (Steel, Black Oxide) (25-Pack) | Steel | STEP | Link | 0.029 lbs | |
| WCP-0273 | #10-32 x 4.000" L SHCS (Steel, Black Oxide) (25-Pack) | Steel | STEP | Link | 0.033 lbs | |
| WCP-0274 | #10-32 x 4.500" L SHCS (Steel, Black Oxide) (25-Pack) | Steel | STEP | Link | 0.036 lbs | |
| WCP-0275 | #10-32 x 5.000" L SHCS (Steel, Black Oxide) (25-Pack) | Steel | STEP | Link | 0.040 lbs |
